C2 270° High-performance 270 degree 2D LiDAR

Designed for robotics and industrial application

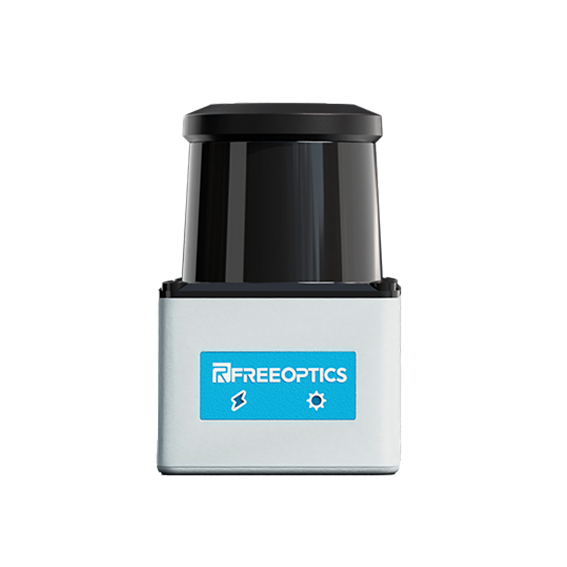

C287 - Compact, Precise, All-round

-The C287 is a highly compact LiDAR sensor,
with dimensions of just 50 mm × 76 mm × 50 mm, making it easy to embed into robots of various sizes without compromising design flexibility.

-Engineered for precise perception, it features dual-mode 270° scanning that seamlessly fuses navigation and obstacle detection, enabling robots to localize and move safely in dynamic environments.

-Its all-round adaptability is enhanced by advanced I/O obstacle avoidance functionality, allowing direct system integration even in complex application scenarios.

High capability in a compact design, offered at a competitive price.

High-Accuracy C2

*The appearance of products published on this website may vary due to screen display, product batch or version customization. Please refer to the actual sample/product for accuracy; The product parameters are typical values under specific testing conditions and may vary due to differences in product batches, hardware versions, and usage conditions. Please refer to the factory inspection for qualification; The product certification information shall be based on the official certification documents. Our company has the right to interpret the information on this website.

Measuring range 0.1-45m
Ranging capability:
0.2-6m@3% reflectivity
0.15-15m@10% reflectivity
0.1-45m@90% reflectivity
0.15-45m@PL560 reflectivity

Blind zone range
(measured from optics cover) 7.5cm

Range accuracy ±30mm

Statistical error(1σ) ±7mm@10m
10% reflectivity

Angular resolution 0.05°@15Hz
0.1°@30Hz

Scanning method dToF

Scanning angle 270°

Light source Pulsed laser diode

Laser wavelength 905nm

Laser safety class Class 1

Beam divergence angle 10mrad

Output resolution 1.0mm

Sampling rate 108kHz

Response time ≤33ms(30Hz)
≤66ms(15Hz)

Supply voltage DC12~26V

Power consumption ≤9W

Interface Ethernet(TCP)

Field sets 16x13

Input 4(NPN/PNP)

Output 3(NPN/PNP)

Certified authority TÜV Rheinland

Standards CE: AE 50572811 0001
CB: JPTUV-131604-A1
FCC: AK 50572813 0001
UL: R 50574068 0001
CU 72239450 01

Dimension(W×H×D) 50mm × 76mm × 50mm

Weight 0.13kg

Case material PC+ABS

Housing color RAL 9005 (Black)RAL 9002(Grey white)

Enclosure rating IP65

Ambient light immunity ≤80000 Lux

Operating temperature -10°C~50°C

Storage temperature -30°C~70°C

Shock resistance

IEC 60068-2-27

Half-sine shock,15g,11ms,3 times per impact surface, total of 18 shocks

Vibration resistance

IEC 60068-2-6

10–55Hz, double amplitude 1.5mm, sweep rate 1 octave/min

Damp heat, steady state

IEC 60068-2-78

Temperature 80°C, humidity 95%, duration 67 hours

Change of temperature

IEC 60068-2-14

-10°C(4H)to 50°C(8H), 1°C per minute, 4 cycles

Electrostatic Discharge

IEC 60068-4-2

±6.0kV (contact discharge), ±8.0kV (air discharge)

Radio Frequency Electromagnetic Field

IEC 60068-4-3

10V/m

Power-frequency magnetic field

IEC 60068-4-8

100A/m

Electrical fast transients/burst immunity test

IEC 60068-4-4

±1kV for DC port

Radio frequency conducted immunity test

IEC 61000-4-6

10V for DC port

Enclosure rating IP65 (IEC 60529)

Ambient light immunity ≤80 klx

Operating temperature -10°C~50°C

Storage temperature -25°C~70°C

Vibration resistance IEC 60068-2-6, IEC 60068-2-64 IEC 60721-3-5, IEC TR 60721-4-5 IEC 61496-3

Class 5M1 (IEC 60721-3-5)

Shock resistance IEC 60068-2-27, IEC 60721-3-5 IEC TR 60721-4-5, IEC 61496-3

Continuous shock 50 m/s², 11 ms 100 m/s², 16 ms

EMC IEC 61496-1, IEC 61000-6-2 IEC 61000-6-3

CONTACT SALES

03 | variants

Sampling rate:108K

04 | Application

The C-Series 2D LiDAR delivers tailor-made solutions across a broad range of applications. From navigation in compact AMRs to object detection in service robots and stationary automation, it offers seamless integration. Its versatility makes it a reliable choice for diverse industrial and service scenarios.

C2 270° High-performance 270 degree 2D LiDAR

Designed for robotics and industrial application

C287 - Compact, Precise, All-round

High capability in a compact design, offered at a competitive price.

High-Accuracy C2

03 | variants

Configurable for your requirements with different variants

C200

High-performance 270° 2D LiDAR

C293

High-performance 270° 2D LiDAR

C223

High-performance 270° 2D LiDAR

C202

High-performance 270° 2D LiDAR

C287

High-performance 270° 2D LiDAR

04 | Application

Warehouse and logistics

Service robots

Stationary

Specialized
