S1
275° 2D LiDAR
R2
360° 2D LiDAR
H1EO-02A Network port
270° 2D LiDAR
H1E0-04D Network port
C287 Network port
C3 Network port+IO
Traffic flow monitoring, clearance height management, subway platform screen door safety protection, etc., requiring long detection range, wide field of view, and weather resistance.
◈ Monitoring scenarios require long-range and wide-angle coverage to accurately identify vehicle contours, speed, and other information;
◈ Scenarios such as subway platform screen doors require rapid response to gap obstacles to ensure operational safety;
◈ Adaptation to complex weather conditions such as rain, snow, and strong light is necessary.
◈ Traffic Flow Monitoring and Analysis: The H1 series/R2 series LiDAR can accurately measure vehicle speed, contour, and type, providing data support for traffic flow analysis and signal optimization; ◈ Vehicle Contour Detection: The C2/H1 series installed ahead of height-restricted sections can monitor vehicle appearance and size in real time, linking with early warning systems to prevent oversize vehicles from passing; ◈ 3D Panoramic Monitoring: The DF1 series supports 360° × 62° 3D scanning with an angular resolution of 0.3° × 1° and a range of 120m, making it suitable for large-scale traffic monitoring; ◈ Subway Platform Screen Door Protection: The C2/H1 single-line scanners are suitable for small gap scenarios (e.g., full-height doors in straight stations), while the C4 multi-line (1–4 layers adjustable) sensors adapt to larger gap scenarios (e.g., half-height doors or curved stations), providing comprehensive safety protection; ◈ Response time ≤33ms, improving efficiency multiple times compared to manual observation, ensuring completion of the "intrusion detection–alarm–braking" loop before train departure; ◈ IP65 dust and water resistance certification, compact design suitable for new projects and retrofits, reducing installation difficulty; ◈ Harsh Environment Adaptation: The DF1 series boasts an IP67 protection rating, operates in a temperature range of -20°C to 55°C, and maintains ±2.5cm ranging accuracy in rain, snow, and strong light.

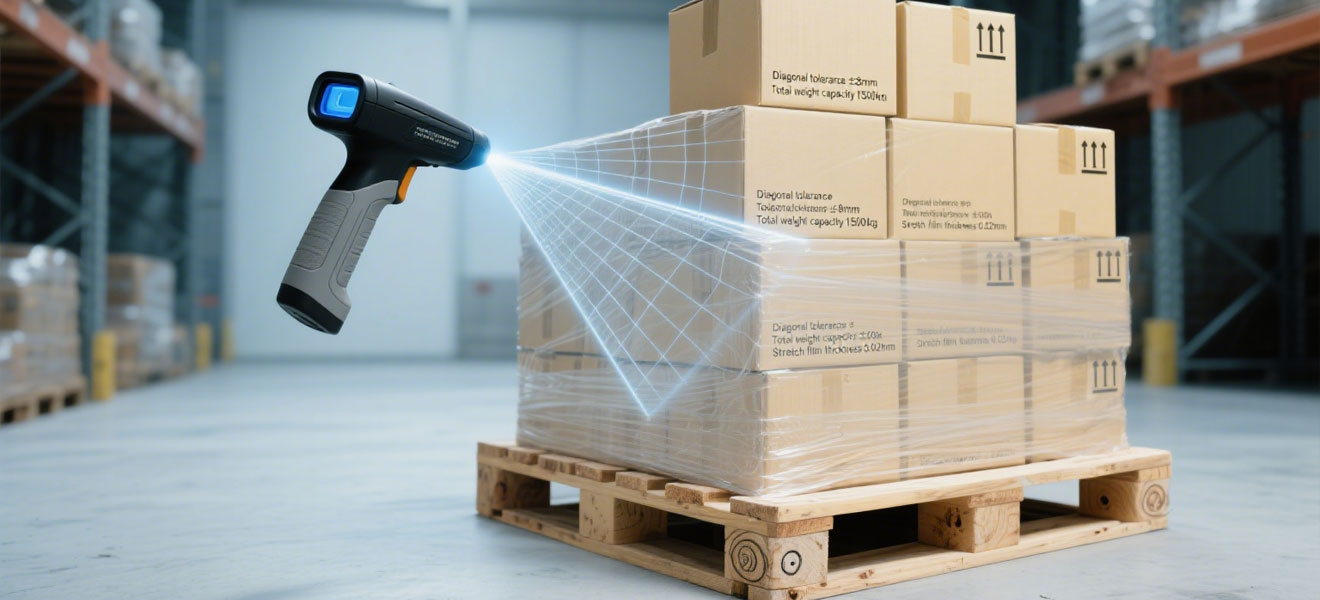

In warehouses and logistics centers, pallet dimensioning systems automatically measure pallet size and load contours to optimize storage, transportation planning, and billing. They replace manual measurement, improve efficiency, and integrate with warehouse management systems.
◈ Accurately capturing the contour and dimensions of irregular or uneven pallet loads;
◈ Delivering fast, reliable measurements in stationary setups to support high-throughput operations;
◈ Ensuring simple calibration and smooth integration with existing warehouse automation systems.
◈ High-precision contour capture: The R Series achieves ±25 mm accuracy and 0.02° resolution, enabling reliable mapping of pallet edges and volumes; ◈ Compact and cost-effective option: The H Series offers configurable resolution down to 0.05° and strong near-field detection, ideal for confined scanning setups; ◈ Operational efficiency: Automated measurement from both R and H reduce manual errors, accelerates the process, and optimizes warehouse storage utilization; ◈ Easy integration: Compact design and flexible configuration allow seamless deployment in pallet dimensioning stations, supporting scalable automation expansion.
Guidance in malls, hospitals, tourist attractions, and community patrols, requiring safe navigation and precise interaction in complex pedestrian environments.
◈ Navigating crowded indoor spaces with dynamic/static obstacles like pedestrians and furniture;
◈ Maintaining perception stability in complex outdoor environments (e.g., uneven terrain, changing weather);
◈ Adapting to complex terrain, achieving dynamic balance, and ensuring safe close-range interaction;
◈ Indoor Scene Adaptation Ⓐ Precise Navigation & Obstacle Avoidance: oThe C2 series can achieve 270° high-definition imaging, accurately detecting obstacles like pedestrians, tables, chairs, and railings. It enables real-time path planning and flexible obstacle avoidance during guided tours. Ⓑ Superior Near-Field Perception: oThe H1 series excels in near-field detection, accurately identifying close-range obstacles like carts and low trash cans. It ensures safe distancing even in narrow passages. ◈ Outdoor Scene Adaptation Ⓐ 3D Panoramic Perception: oThe DF1 series supports 360° × 62° 3D scanning with an angular resolution of 0.3° × 1° and a range of 120m. It generates real-time 3D point cloud maps to accurately identify terrain features and dynamic targets. Ⓑ Resilience to Harsh Environments: oWith an IP67 protection rating, an operating temperature range of -20°C to 55°C, and built-in IMU and PTP synchronization, it maintains ±2.5cm accuracy in rain, snow, and strong light, ensuring stable navigation.
FOR ROBOTIC AND INDUSTRIAL APPLICATIONS
FREEOPTICS has established cooperative relationships with numerous clients from various industries around the world, ranging from startups to industry leaders. Our partners cover multiple fields such as service robots, smart logistics and warehousing, high-precision modeling, and static applications.
