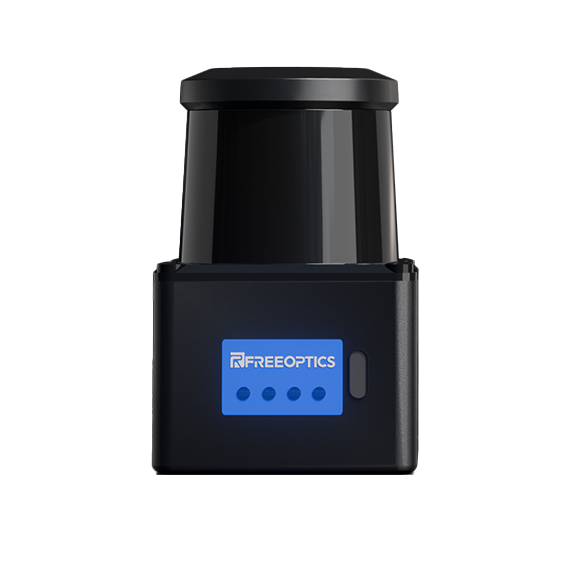

C3 270° High-efficiency 270 degree 2D LiDAR

Designed for robotics and industrial application

C3 - Efficient • Rugged • Reliable

The C3 Series is a 270° 2D LiDAR specialized for obstacle avoidance in mobile platforms and industrial systems. With reliable I/O-based performance and USB-enabled rapid zone setup, it ensures fast deployment and dependable safety in dynamic environments. Designed with a cost-optimized architecture, the C3 balances affordability with durability, offering an efficient and rugged entry-level solution for robots, forklifts, and automation applications that require stable obstacle detection without unnecessary complexity.

Efficient LiDAR specialized in obstacle avoidance for dynamic logistics environments

High-efficiency C3

*The appearance of products published on this website may vary due to screen display, product batch or version customization. Please refer to the actual sample/product for accuracy; The product parameters are typical values under specific testing conditions and may vary due to differences in product batches, hardware versions, and usage conditions. Please refer to the factory inspection for qualification; The product certification information shall be based on the official certification documents. Our company has the right to interpret the information on this website.

Measuring range 0.1-25m
Ranging capability:
0.15-6m@3% reflectivity
0.1-8m@10% reflectivity
0.1-25m@90% reflectivity
0.1-25m@ PL560 reflectivity

Blind zone range
(measured from optics cover) 7.5cm

Range accuracy ±30mm

Statistical error(1σ) ±7mm@10m
10% reflectivity

Angular resolution 0.33°@25Hz

Scanning method dToF

Scanning angle 270°

Light source Pulsed laser diode

Laser wavelength 905nm

Laser safety class Class 1

Beam divergence angle 10mrad

Output resolution 1.0mm

Sampling rate ≤27kHz

Response time ≤40ms(25Hz)
≤66ms(15Hz)

Supply voltage DC12~26V

Power consumption ≤9W

Interface Ethernet(TCP)

Field sets 16x13

Input 4(NPN/PNP)

Output 3(NPN/PNP)

Dimension(W×H×D) 50mm × 76mm × 50mm

Weight 0.13kg

Case material PC+ABS

Housing color RAL 9005 (Black)

Enclosure rating IP65

Ambient light immunity ≤80000 Lux

Operating temperature -20°C~55°C

Storage temperature -30°C~70°C

Shock resistance

IEC 60068-2-27

Half-sine shock,15g,11ms,3 times per impact surface, total of 18 shocks

Vibration resistance

IEC 60068-2-6

10–55Hz, double amplitude 1.5mm, sweep rate 1 octave/min

Damp heat, steady state

IEC 60068-2-78

Temperature 80°C, humidity 95%, duration 67 hours

Change of temperature

IEC 60068-2-14

-10°C(4H)to 50°C(8H), 1°C per minute, 4 cycles

Electrostatic Discharge

IEC 60068-4-2

±6.0kV (contact discharge), ±8.0kV (air discharge)

Radio Frequency Electromagnetic Field

IEC 60068-4-3

10V/m

Power-frequency magnetic field

IEC 60068-4-8

100A/m

Electrical fast transients/burst immunity test

IEC 60068-4-4

±1kV for DC port

Radio frequency conducted immunity test

IEC 61000-4-6

10V for DC port

Enclosure rating IP65 (IEC 60529)

Ambient light immunity ≤80 klx

Operating temperature -10°C~50°C

Storage temperature -25°C~70°C

Vibration resistance IEC 60068-2-6, IEC 60068-2-64 IEC 60721-3-5, IEC TR 60721-4-5 IEC 61496-3

Class 5M1 (IEC 60721-3-5)

Shock resistance IEC 60068-2-27, IEC 60721-3-5 IEC TR 60721-4-5, IEC 61496-3

Continuous shock 50 m/s², 11 ms 100 m/s², 16 ms

EMC IEC 61496-1, IEC 61000-6-2 IEC 61000-6-3

CONTACT SALES

03 | Application

The C3 Series is widely used in warehousing and logistics, where it equips mobile platforms such as AMRs and forklifts with dependable obstacle detection and avoidance. Its 270° field of view, rugged design, and cost-optimized operation ensures safe collision prevention in daily material handling and logistics workflows.
